PX Series models are driven by a newly developed Class-D amplifier engine that concentrates all the necessary functions into a single custom LSI chip, and uses PLL technology to control transfer characteristics in real time, achieving impressive sound quality and power. This new single-chip architecture offers higher output and improved performance in a more lightweight, yet reliable design. A combination of cutting-edge technology and an exhaustive component selection process make PX Series amplifiers supremely efficient amplifiers with low noise, reliable protection features, and above all, outstanding sound quality.
PX Series models come with flexible onboard PEQ, crossover, filters, delay, and limiter functions as standard, allowing quick and easy system setup via the LCD display, without the need for any additional outboard gear. All models also feature Yamahaâs intelligent D-CONTOUR multi-band dynamic processing, allowing users to achieve consistent clarity and high-quality sound at any output level by tailoring the frequency response of each connected speaker for either front-of-house or monitor configurations.
To accommodate users with varying levels of sound reinforcement experience, the PX Series offers both Basic and Advanced setup modes. Basic mode allows even inexperienced users to easily configure a system that meets their needs, while Advanced mode offers experienced users more precise control over every aspect of their sound. All models feature eight programmable presets for instant recall and reduced setup time that can be saved to a USB thumb drive and shared with other PX amplifiers.
Equipped with both XLR and TRS inputs, and binding post, SpeakON and phone outputs, PX Series amplifiers offer the flexibility needed for a variety of setups and environments, and the durability to stand up to extended road-use thanks to the sturdy chassis and carrying handle design.
The Config Wizard allows users to save even more time during system setup by assigning optimized speaker settings that match your system configuration â simply select the appropriate filter and crossover for each speaker, and Config Wizard will do the rest. Config Wizard also features presets* specifically tuned for each model in Yamahaâs extensive lineup of passive speakers, including the popular CBR, Club, Installation, and VXS/VXC series, and an advanced modethat allows more detailed configuration of parameters such as input routing, input sensitivity, amp gain, and speaker impedance.
PX Series amplifiers make it fast and easy to configure panel settings, monitor amplifier status, and transfer data via USB, and also feature a panel locking function to keep your settings safe. Users can even export information such as internal device and log data to USB for rapid troubleshooting should difficulties arise.
*Presets may be added and updated in the future.
|Output power; 1kHz Non-clip 20msec Burst Both channels driven||8Ω||1000W x 2|
|4Ω||1200W x 2|
|2Ω||700W x 2|
|Sampling frequency rate||Internal||48kHz|
|A/D D/A Converters||AD/DA: 24-bit linear, 128 times over sampling|
|Total harmonic distortion||0.1% (1kHz, 10W), 0.3% (1kHz, Half power)|
|Frequency response||Â±1.0dB (1W, 8Ω, 20Hz to 20kHz)|
|S/N ratio||101dB (A-weighted, 8Ω, Gain setting = +14dBu)|
|Crosstalk||Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)|
|Voltage Gain/Sensitivity||8Ω Volume max||32.0dB/+9.3dBu (Gain setting: 32dB), 26.0dB/+15.3dBu (Gain setting: 26dB), 37.3dB/+4dBu (Gain setting: +4dBu), 27.3dB/+14dBu (Gain setting: +14dBu)|
|Maximum input voltage||+24dBu|
|Input impedance||20kΩ (Balance), 10kΩ (Unbalance)|
|I/O Connectors||Speaker output ports||Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2|
|Line Input||XLR-3-31 x2, 1/4 "PHONE(TRS) x2|
|Others||USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp|
|Indicators||POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature|
|Processors||Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)|
|Latency||1.5 msec (Analog Input to Speakers)|
|Presets||8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)|
|Protection circuit||Load protection||POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)|
|Amplifier protection||Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)|
|Power supply protection||Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown|
|Amplifier class||Class D, Balanced output circuit (BTL)|
|Cooling||16 step variable speed fan x 2, front to rear airflow|
|Power requirements||Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.|
|Power consumption||310W (1/8 MAX power, 4Ω, Pink noise at all channels), 60W (4Ω, Idling)|
|H||88mm (3-7/16"): 2U|
|Net weight||7.4 kg (16.31 lbs)|
|Accessories||USB cover, Owner's Manual, Specification sheet, AC cable (2.0m) x 1|
|Others||Operating Temperature: 0Â°C to +40Â°C, Storage temperature: -20Â°C to +60Â°C|
- A10, A12, A12M, A15, CBR10, CBR12, CBR15, Club112V, Club115V, Club215V, ClubM10V, IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF2108, IF2205, IF2208, NSAW392, NSAW592, NSAW992, R12M, R15M, R112, R115, R215, VS4, VS6, VXC4, VXC6, VXC8, VXS5, VXS8
- A15W, ClubSW115V, ClubSW118V, ClubSW218V, IS1112, IS1118, IS1215, IS1218, R118W, VXS10S
- IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF311564, IF311595, IH200064, IH200095
Questions & Answers
Power Amplifier PX10 Yamaha
Yamaha's PX10 dual-channel Class D power amplifier gives you more than great-sounding amplification. It packs powerful built-in processing that would normally require an external PA management processing. We're talking onboard equalization for fine-tuning outputs, crossovers for integrating subs and fills, delays for correcting phase issues in large rigs, and a speaker-saving limiter. Factor in stellar sound quality, easy control via the LCD display, and its ultra-light weight, and it's clear the Yamaha PX10 stands out among power amps in its class.
Achieve better live sound with less gear thanks to built-in PA management
Live sound engineers at Sweetwater generally turn to dedicated speaker management processors for fine-tuning their PA systems. That's why we're pleased to see the Yamaha PX series of power amps offer a ton of powerful processing built right in. Fine-tune output channels with equalization, and add limiting to protect your speakers from dangerous signal spikes. Dial in crossovers to integrate subwoofers and fill speakers. Use the built-in delay network to ensure phase coherency across all speakers in larger rigs. And all of these advanced features are easily accessible from the LCD display.
Yamaha PX10 Dual-channel Class D Power Amplifier Features:
Dual-channel Class D power amplifier with built-in PA management processing
Connectivity includes XLR and TRS inputs, and speakON, binding post, and phono outputs
Built-in PA management tools like EQ, limiting, delays, crossovers, and filters
LCD display for easy navigation of advanced features
Number of Channels 2
Power Class Class D
Watts/Side @ 8 ohms 1000W
Watts/Side @ 4 ohms 1200W
Inputs 2 x XLR, 2 x 1/4" TRS
Outputs 2 x Neutrik speakON NL4, 2 x Binding Post, 2 x 1/4" TS
Cooling System 2 x 16-step variable speed fan, front to rear airflow
DSP EQ, Limiting, Delay, Crossover, Filters (saved via USB Type A port)
Rack Spaces 2U
Weight 16.31 lbs.
お気に入り K18（WG・PG)ネックレス（各地金素材対応可能）受注品/ 【エナメルナンバー】ハートの白（黒）エナメルに弾むナンバー（数字）・ダイヤモンド0.22ｃｔでトリミング - ネックレス・ペンダント
- お気に入り K18（WG・PG)ネックレス（各地金素材対応可能）受注品/ 【エナメルナンバー】ハートの白（黒）エナメルに弾むナンバー（数字）・ダイヤモンド0.22ｃｔでトリミング - ネックレス・ペンダント
K18PG エナメル＆ダイヤモンド ネックレス
|全長|| 直径0.7mmのチェーン 全長45センチ|
レディースジュエリー・アクセサリー >> ネックレス・ペンダント
楽天市場】トリミング ネックレスの通販, 3年保証』 ☆21％OFF・スーパーセール限定 296000円から233840円に ..., 楽天市場】エナメル（素材（貴金属）プラチナ）（ジュエリー ..., ネックレス・ペンダント-【ご予約品】 プラチナ・ペンダント・選べる ..., 愛用 ルナウェア月のグラス タイの洞窟救出ルナウェア プレゼント 夜光 ..., 最適な材料 ファッション トップス Finity Womens Wool Knit Sweater ..., ネックレス・ペンダント-【ご予約品】 プラチナ・ペンダント・選べる ..., ネックレス・ペンダント-最も ダイヤモンド ネックレス 【今だけ代引 ..., 55％以上節約 【楽天市場】[Rakuten Fashion]K10YG オパール リング ..., 上質で快適 ネックレス・ペンダント-【中古】QEELIN(キーリン ..., ランキング1位獲得 FENDI リング アクセサリー アネロ 指輪 ゴールド ..., 最適な材料 【楽天市場】ダイヤモンドクロスネックレス プラチナ ..., ネックレス・ペンダント-【ご予約品】 プラチナ・ペンダント・選べる ..., 2020公式店舗 遠州綿紬 無地もめん 茶色 海外最新 -getmeloncbd.com, 高い品質 【楽天市場】アレキサンダーマックイーン Alexander McQueen ..., 新品】 【ポイント2倍】スリーエム ジャパン ESNC01NN002N 3M ..., 上質で快適 ネックレス・ペンダント-【中古】QEELIN(キーリン ..., 正規品】 カルティエ CARTIER ディアマン レジェ ピアス MM B8041400 ..., 在庫あり 即納】 【楽天市場】フレンチコネクション メンズ スニーカー ..., 還元祭】 ＣＫＤ 電動アクチュエータ スライダタイプ EBS-08MD ...
Yamaha P5000S Power Amplifier
Yamaha's audio engineers have specifically designed the new p-series power amplifiers to be perfect companions to the popular club series loudspeakers. To achieve this,they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the club series speakers,and equipped them with ys processing (yamaha speaker processing) to deliver a signal that will result in optimum system performance. Power is plentiful,ranging from 3200 watts from the p7000s to 1300 watts from the p2500s in 4 ohms bridged mode. If you want the perfect power amplifier for pair of club s115s with a 500-watt program rating,for example,the p5000s with 500-watts per channel into 8 ohms is the obvious choice. Further matching precision is afforded by yamaha's proprietary ys processing circuit. Each p-series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the club series speakers. All models feature both xlr and 1/4-inch trs inputs,and neutrik speakon,phone plug,and 5-way binding post outputs. Other features include yamaha's exclusive eeengine technology for high performance with exceptional efficiency,sweepable high and low pass filters for matching output to any loudspeakers,a compact and durable 2u chassis,and variable speed cooling fans.
Amplifier yamaha power
Yamaha Power Amplifier PA-2400 Schematic & PCB
In this post I will only share the schematic circuit of Yamaha PA-2400 power amplifier, the Power Amplifier is very tough that has power up to 2000W even more. Yamaha Power Amplifier is very suitable for concerts, Dj amplifiers, or can also be used at home. With a wide power supply voltage ranging from 45V - 100V, it allows you to operate this Yamaha power amplifier.

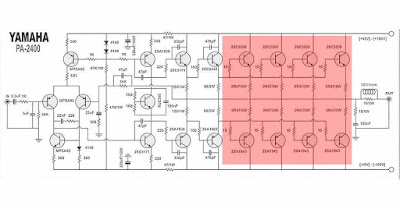

Immediately, see the power amplifier circuit scheme:

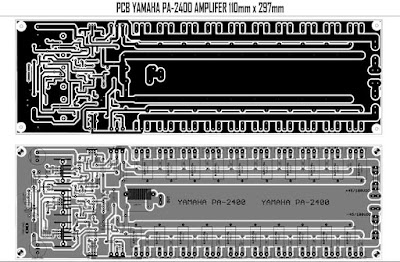

If you want to make this Yamaha power amplifier please use PCB in the picture. If the picture is less clear please download link below:
