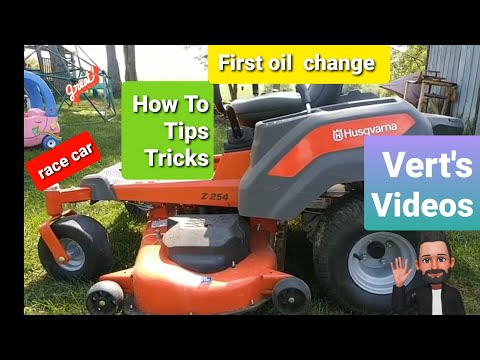

Husqvarna Z Zero Turn Mower Oil Change

Husqvarna Z Zero Turn Mower Oil Change

Changing the oil on a Husqvarna z

What you need: Husqvarna Zero Turn lawn mower.

  1. Place the mower on a level surface.
  2. Place a container under the engine where the hose for the oil drain valve exits.
  3. Remove the ■■■■■■■■.
  4. Unscrew the lid.
  5. Remove the lid and let the oil flow into the container.
  6. Cover and tighten.

With this in mind, how can I change the oil in Husqvarna?

  1. Park the mower on level ground.
  2. Find the oil drain valve (located under the tractor engine).
  3. Remove the valve cap.
  4. Secure the oil drain line.
  5. Prepare the container to catch the oil.
  6. Unlock the drain valve by pushing and turning.
  7. Pull out the drain valve to start the oil flow.

What kind of oil does Husqvarna’s zero turning radius use?

EZ, MZ and previous zero-turn commercial ZTH mowers use 20w50 non-synthetic motor oil. The liquid capacity is specified in the instruction manual. IZ, LZ, BZ mowers use 15w50 synthetic engine oil, capacity is indicated in the instruction manual.

And how much oil does a Husqvarna z consume?

The Husqvarna lawn mower has 20 grams of engine oil to lubricate the engine. Husqvarna recommends an oil with the API SGSL classification. API stands for American Petroleum Institute and provides standard oil assessments. The recommended weight of the oil depends on the temperature at which you are cutting.

How do you lift the Husqvarna lawn mower?

Park your Husqvarna lawn mower on a level surface. Attach the parking brake lever to your left foot. Slide the clutch switch up from the bracket switch on the left side of the dashboard to disengage the mowing blades. Lift the lever from the bracket on the left side of the driver’s seat to the highest position.

How do you change the oil in Ariens Zoom 42?

Call back! : Oil change while the engine is still slightly warm!

How do you sharpen a Husqvarna Zero Turn?

  1. Stop the engine, remove the ignition key.
  2. Raise the belt to the highest position possible.
  3. Place a block of wood between the blade and the packaging.
  4. Remove the blade screw by turning it counterclockwise with an adjustable wrench or socket.
  5. Place the new open knives on the spindle housing.

Which oil should I use on my Husqvarna lawn mower?

Husqvarna YTH22V46, a inch deck mower, uses SAE 30 general purpose lawn mower oil and SAE 5W30 when cold. These numbers refer to the viscosity of the oil, and changing the type of oil in cold weather will help you get started.

How much oil does a Husqvarna lca consume?

When you change the oil, you may need 20 ounces.

How much oil do you put in a lawn mower?

What is SAE 30 oil?

SAE 30 oil is an engine oil that has been assigned a viscosity index of 30 by the Society of Automotive Engineers, according to the AA1Car Automotive Diagnostic Support Center. Motor oils are generally of a grade of 0 to

How often do you change the oil in your lawn mower?

If you take good care of your lawn mower, your machine will serve you well for many years to come. One overlooked aspect of lawn mower maintenance is how often the oil needs to be changed. Engine oil and oil filter should be changed at least once in spring or summer or every 50 hours of operation, whichever comes first.

How much oil does a Husqvarna LGt consume?

Husqvarna LGT Engine

Can I use synthetic oil in my Husqvarna lawn mower?

Can synthetic lawnmower oil be used?

Yup! We have changed our engine oil recommendations so that 5W30 (WEB) or 10W30 synthetic oil can now be used in all temperature ranges. We recommend using Briggs & Stratton synthetic oil.

What oil do you put in a hydrostatic transfer?

What oil should I put in my lawn mower?

Recommendations for Small Engine Oil Types:

What type of oil do you use for zero rotation?

Temperature ranges below 32 degrees Fahrenheit require SAE 5W20 oil. Temperature ranges from zero F to approximately 95 F require SAE 10W30 or SAE 10W40 oil. Temperature ranges between 32 F and 95 F require SAE 30 oil. Temperature ranges between 70 F and F require SAE 40 oil.

What kind of oil does my lawn mower use?

Standard oil for 4-stroke petrol lawn mower engines is SAE 30 class. Synthetic variants include SAE 5W30 and SAE 10W

Where is the oil drain plug on a Husqvarna lawn mower?

The oil drain valve on Husqvarna lawn mowers is located under the engine. Open the tractor hood to reveal the engine. It may also be necessary to remove the lower dashboard cover. To remove the dash bottom cover, slowly slide it up and remove the cover when the tabs are out of the conical grooves.

How do you clean a Husqvarna Zero Turn?

How do I set the speed of a zero turn mower?

How to adjust the speed of a Toro Zero Turn mower

How can I cut a straight line with zero turn?

Husqvarna Z Zero Turn Mower Oil Change

Sours: https://howtodiscuss.com/t/husqvarna-zzero-turn-mower-oil-change/

It is only natural for Husqvarna riding lawnmower owners to expect maximum performance and long service life.  But good performance and service life depend a lot on machine maintenance. Part of this maintenance is performing an oil change at the recommended time. A lawnmower has many moving parts that come in contact with each other and require proper lubrication. Bad lubrication can lead to excessive heating of the machine and additional wear and tear of parts. The oil that has reached its service limit will not provide proper lubrication and should be replaced with fresh oil. This article will take you through the step-by-step oil change procedure for your Husqvarna riding lawnmower.

How to Change the Oil in your Husqvarna Riding Lawn Mower, step by step:

  • Step 1: Get everything you need for the oil change
  • Step 2: Prepare the Husqvarna lawnmower
  • Step 3: Drain the Oil using the drain valve
  • Step 4: Alternate Method to drain the oil, using an oil pump
  • Step 5: Adding Fresh Engine Oil
  • Step 6: Check the Oil Level
  • Step 7: Your Husqvarna Lawnmower is ready to start

Contents

The Oil Change Procedure of a Husqvarna Riding Mower, Step by Step:

We will look into the different steps in more detail

● Step 1: Get everything you need for the oil change

Step one involves the collection of all the things you need for the oil change:

  • The recommended engine oil. Check the manual for more information. Usually SAE
  • A container for oil collection
  • Oil fill cap/dipstick
  • A funnel
  • Cloth/paper pieces of cardboards

● Step 2: Preparation the Husqvarna lawnmower

Park the mower at a place that can deal with an accidental oil spill. When you remove the oil, it is always possible that some of it will spill on the ground. Then let the Husqvarna lawnmower run for 10 to 15 minutes. That will warm up the oil, and makes it much easier to replace. It also makes checking the oil level easier.

● Step 3: Drain the Oil using the drain valve

Oil change includes removing (draining) the old oil and pouring in fresh oil. The drainage step is explained below:

  • Open the drain valve: Locate: Locate the drain valve, remove the cap at the end and remove it. Then open the drain valve.
  • Tile the mower: Tilt your Husqvarna Riding Lawnmower and drain the oil slowly into a bucket
  • Move the mower: Try to move/shake the mower, so any remaining oil left in the engine is removed.
  • Close the drain valve: Once the old oil is completely drained, close the valve and put the cap back on its end.
  • Container: Now pour the old used oil into a sealed container.
  • Dispose: Dispose of this Oil at a proper place with or without the container.

● Step 4: Alternate Method to drain the oil, using an oil pump

The alternate method for oil draining purpose is to use:

  • Oil pump: An oil pump, either electric or mechanical.
  • Oil Suction tool: Use an oil suction tool to remove the oil.

● Step 5: Adding Fresh Engine Oil

Now you can fill the Husqvarna Riding Lawnmower with fresh oil. Pour the oil in. New oil has a bright brown or golden color, which is different from the previously removed dark brown oil. You should follow these steps:

  • Funnel: Place the funnel on the filler area.
  • Pour the oil in: Pour the engine oil through the funnel slowly. Stop after adding a little, then check it using the dipstick. Keep repeating this process until the oil level is close to the maximum limit mark. Clean the dipstick every time you check the oil level.
  • Avoid overfilling: Avoid overfilling of the oil. In case you overfill you can use an oil pump to remove it.

● Step 6: Check the Oil Level

Before starting the engine, is it a good idea to check the oil level. You can do this as follow:

  • Flat area: Make sure the lawnmower is parked on a leveled site.
  • Open the fill cap: Find the fill cap, remove it, and clean it with a cloth.
  • Clean: thoroughly clean the cap and the area around the crankcase.
  • Check the dipstick: Check the oil level by re-inserting the dipstick. When you take the dipstick out, you will see the thick oil layer attached to it. If it&#;s near the low marking, your mower needs more oil. If it&#;s been some time since you last changed the oil, you should completely change it instead of just topping up on what was already there.
  • Add oil if needed: If the level is not ok, add oil and check again. If the level is higher than it should, you have to remove some of the excess oil.

● Step 7: Your Husqvarna Lawnmower is ready to start

With fresh oil added, your Husqvarna Riding lawnmower is set to perform again. The final setting up involves:

  • Oil cap: Tighten the oil cap.
  • Start the engine: Start the engine just as usual and use your mower to check whether it is working fine or not.
  • Recheck the oil level: After the engine has been running for a short while, it is a good idea to recheck the oil level. Now the oil is hot, and that makes it more fluid.

Necessary Precautions:

Removing and adding oil looks very simple and easy, especially if you are watching a tutorial from any source. But there is always room for precautions that need to be taken to avoid emergencies.

  • Ventilated location: The Husqvarna Lawnmower requires an adequately ventilated room or an open area for maintenance. Ensure that no fire source is near to it during the oil change since it is flammable.
  • Flat area: Select a proper flat surface for perfect oil level checking, and place it on a character from which you can easily wash off oil spots if any leakage happens. Place a cardboard piece or a mat under the mower and adequately dispose of it afterward.
  • Use the correct oil: Prior knowledge of fuel is also necessary to know what SAE or the numbers indicate in oil grades such as SAE Referring to the user manual, use the fuel of desired thickness and engine oil grade. ( SAE = Oil Grade, 30 = viscosity )
  • Overfilling: In case of overfilling, your mower will not work as it starts producing heat and raises the overall temperature. Excess oil also affects the motion of your mower crankshaft. The maximum amount a lawnmower takes is near 18 ounces. Thus avoid overfilling, and in case of any symptoms of overheating, remove the excess oil immediately.

How to dispose of your old oil

There are various locations where you can dispose of your old oil. You can bring it to your lawnmower dealer or repair shop. Most car parts stores or car repair shops will take it from you as well. But some may ask for a small recycling fee. Never dispose of old oil in the sewerage or somewhere outside. The oil contains all kinds of hazardous chemicals that are bad for the environment.

When to Change Oil in a Lawnmower?

How often to change oil depends on how much the mower is being used and its intensity. Generally, at least one oil change per season is often needed. If your lawnmower is used more frequently or uses your mower more intensively than regular users, you also need more frequent oil changes.

Whenever you buy a Husqvarna riding lawnmower, make sure to read the manual carefully and notice the needed maintenance. Make sure that you replace the current oil with fresh oil that has the correct viscosity and heat bearing characteristics. The right oil type not only depends on your machine, but it also depends on the working environment. Do not forget to follow the safety guidelines. With the step-by-step procedure explained in this blog post, changing the oil on your Husqvarna riding mower will be easy and quick to do.

Sours: https://www.gardentoolexpert.com/how-to-change-oil-in-a-husqvarna-riding-lawn-mower-step-by-step/
  1. Delta cribs instruction manuals
  2. Split handle fishing rods
  3. 2g power words flashcards

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot. To prevent pos-

si ble damage to seals, do not use high pressure water or

steam to clean transaxle.

&#x;

Inspect cooling fan to be sure fan blades are intact and

clean.

&#x;

Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid main te-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

near est au tho rized ser vice center/department.

V-BELTS

Check V-belts for deterioration and wear after hours

of operation and replace if necessary. The belts are not

ad just able. Re place belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SG-SL. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

5W

0

30

F

C

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation.

MAINTENANCE

10W30

32

40

60

80

0

10

20

30

TO CHANGE ENGINE OIL (See Fig. 14 & 15)

Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

&#x;

Be sure tractor is on level surface.

&#x;

Oil will drain more freely when warm.

&#x;

Catch oil in a suitable container.

LEFT LOWER DASH COVER REMOVAL

&#x;

Raise hood.

&#x;

Remove fastener from left lower dash cover.

CAUTION: Remove lower dash cover carefully to ensure

cover tabs are not broken.

&#x;

Slide lower dash cover up to release cover tabs from

tapered slots in lower dash and remove.

LOWER

DASH

COVER

FASTENER

TABS

&#x;

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

&#x;

Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

&#x;

Unlock drain valve by pushing inward and turning

coun ter clock wise.

&#x;

To open, pull out on the drain valve.

40

CLOSED

AND

LOCKED

POSITION

YEL LOW CAP

&#x;

After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

&#x;

Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

&#x;

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this man u al.

&#x;

Use gauge on oil fill cap/dipstick for checking level.

Insert dipstick into the tube and rest the oil fill cap on

the tube. Do not thread the cap onto the tube when

taking reading. Keep oil at "FULL " line on dipstick.

Tighten cap onto the tube securely when finished.

16

Fig. 14

OIL DRAIN VALVE

DRAIN

TUBE

Fig. 15

SLOTS

Sours: https://www.manualslib.com/manual//Husqvarna-Yth24khtml?page=16

Here is what you will need: Husqvarna Riding Mower.

  1. Park your mower on a flat area.
  2. Find oil drain valve (located at the base of the tractors engine).
  3. Remove valve cap.
  4. Attach oil drain tube.
  5. Have container ready to catch oil.
  6. Unlock drain valve by pushing it in and turning.
  7. Pull drain valve out to start the oil flow.

Click to see full answer


Also know, how much oil does a Husqvarna riding lawn mower take?

Husqvarna's riding mower holds 20 ounces of motor oil to lubricate its engine. Husqvarna recommends oil that has an API classification of SG-SL. API stands for the American Petroleum Institute that provides standard oil ratings. The recommended weight of oil depends on the temperature in which you will be mowing.

Similarly, what kind of oil does a Husqvarna riding mower take? The Husqvarna YTH22V46, a riding mower with a inch mowing deck, uses SAE 30 oil for general use of the mower, and SAE 5W for cold weather. These numbers refer to oil viscosity, and changing the type of oil for cool weather will aid starting.

Subsequently, one may also ask, how do I change the oil in my Husqvarna lawn mower?

How to change the oil in your Husqvarna lawn mower

  1. Disconnect the spark plug wire from the spark plug and place the wire where it cannot come into contact with the plug.
  2. Remove the engine oil cap/dipstick; lay aside on a clean surface.
  3. Use a pump to empty the oil.
  4. Check that all the oil is removed using the dipstick.

What happens if you overfill oil in lawn mower?

Effects of Excess OilThe lawn mower engine would need to produce more heat than usual, which also leads to overheating. Moreover, excess oil will negatively affect the motion of the crankcase. If the oil drowns the crankcase, you need to remove it as fast as possible.

Sours: https://findanyanswer.com/how-do-i-change-the-oil-in-my-husqvarna-riding-lawn-mower

Oil husqvarna change tractor

Where Is the Oil Drain Plug on a Husqvarna Riding Mower?

By Jasey Kelly

Adding oil through a funnel to a lawn mower prevents messy spills.

You depend on your riding mower to help you maintain your lawn, but as with all outdoor power equipment, regular use wears on its engine and other parts. Your Husqvarna tractor requires regular maintenance to keep the engine running properly, including regular oil changes. Use the drain valve to drain the mower's old motor oil, just like you do when changing any vehicle's oil.

Drain Valve Location

The oil drain valve on Husqvarna riding mowers is located on the base of the engine. Open the hood of your tractor to expose the engine. You may need to remove the lower dash cover, as well. To remove the lower dash cover, slowly slide it up, and remove the cover once the tabs are out of the tapered slots. Pulling it off too quickly may break off the tabs. The oil drain valve is yellow or has a yellow cap.

Oil Draining Procedure

Before draining the oil from your mower's engine, let the engine warm up -- oil flows more freely when warm. Flip off the cap from the drain valve and place the drain tube, which comes with Husqvarna tractors, over the valve. Place the opposite end of the drain tube in a suitable oil pan or other container. Push the valve in and twist counterclockwise to unlock the valve; then pull it out to start the draining procedure. Once all the oil has drained, remove the tube and replace the cap. Refill the engine with fresh, SAE oil if you're not replacing the oil filter. If you are replacing the filter, refill the oil once the new filter is in place.

Oil Filter Replacement

If your Husqvarna mower is equipped with an oil filter, remove the filter by twisting it counterclockwise. Hold a funnel under the filter, because old engine oil may start to flow once the filter is removed. Double-check the top of the filter to make sure the old gasket came off. Drain the oil from the filter by holding it upside down over a funnel that siphons into the used-oil container. Wipe fresh oil around the gasket of the new filter, and screw the new filter onto the mower's engine. Refill the engine with fresh oil.

Oil Changing Schedule

Husqvarna recommends changing the oil in your riding mower after every 50 hours of use if your model is equipped with an oil filter; change the oil after 25 hours of use if your model is not equipped with an oil filter. The recommended schedule for replacing the oil filter, if equipped, is every season or every other oil change if you use your riding mower more than hours in one year.

References

Writer Bio

With a professional background in gardening, landscapes, pests and natural ecosystems, Jasey Kelly has been sharing her knowledge through writing since and has served as an expert writer in these fields. Kelly's background also includes childcare, and animal rescue and care.

Sours: https://homeguides.sfgate.com/oil-drain-plug-husqvarna-riding-mowerhtml
Husqvarna Riding Lawn Mower Oil Change YTH23V48. Briggs and Stratton 23HP Oil change.

Shut up. Better lie down and put the hole in, - the chief drunkenly grabbed her buttocks. Come on, grief onion, - agreed Ninka and lay down right on the carpet. The chief stood over her, swinging from side to side like a pendulum, and could not take off his pants. Ninka helped him in this.

You will also like:

Insurance certainly didn't cover everything. You can forget about your handsome man, sold for scrap. And I gave everything that I gave to the owner of the Porsche, a tough guy with whom even the traffic cops spoke obsequiously.



14009 14010 14011 14012 14013
